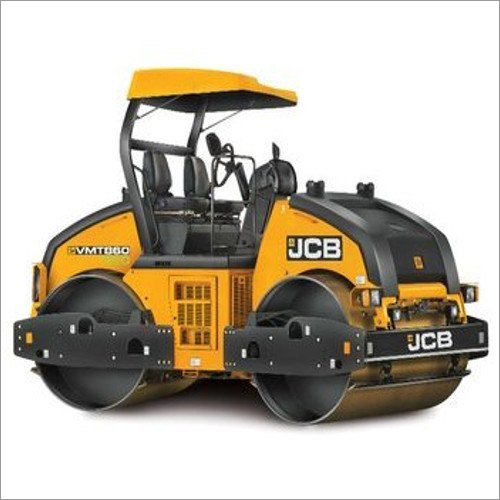

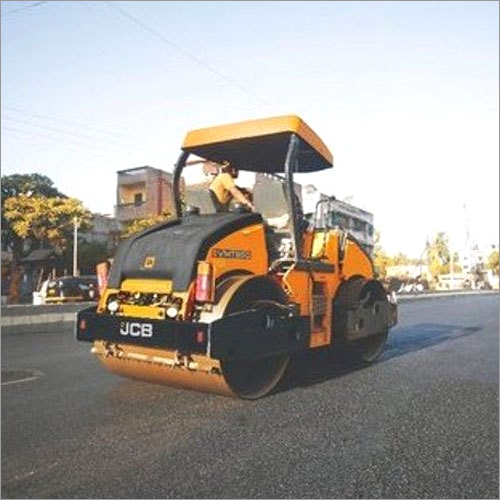

VMT860 JCB Tandem Road Roller

VMT860 JCB Tandem Road Roller
Send Inquiry
Product Code : 02
Price And Quantity
  • Price
  • 2900000 INR/Unit
Product Specifications
  • Material
  • Metal
  • Automatic Grade
  • Automatic
  • Warranty
  • Yes
Product Description

By going through the processing of manufacturing and supplying qualitative range of items in the market, here our firm is providing VMT860 JCB Tandem Road Roller to our clients. It is broadly utilized to attach with JCB for constructing road. This roller made by using qualitative required material with the help of latest technology. VMT860 JCB Tandem Road Roller is appreciated in the market because of its excellent performance, high quality and superb durability. It is delivered by us at a reasonable price rate.

Condition: New

Type:  JCB Tandem Road Roller

Product details

Air Cleaner

Dry Cartridge Plus Safety Cartridge

Axle To Rear Face

770 mm

Battery Capacity

130 Ah

Centrifugal Force Per DrumCentrifugal Force Per Drum

71 Kn

Compaction Depth Upto

70 cm

Drum Thickness

17 mm

Exciter Frequency

33 hz

Front/Rear Departure Angle

42 Degree

Gradeability Upto

22 degree

Height To Top Of Seat

2225 mm

Machine Operating Weight

8750 kg

Nominal Amplitude

1.1 mm

Operating Axle Load Front/Rear

4080 / 4670

Operating Linear Load Front / Rear

24.4 / 27.9 kg/cm

Overall Width

1850 mm


85 mm

Parking Brake

Hydraulically Released Brake On Both Drums (SAHR)

Piston Displacement

4399 cm3

Sprinkler Water (Front/Rear)

535 L

Steering Lock Angle

+/- 24.5 Degree

Total Travel Clearance With Canopy

3070 mm

Total Travel Length

4230 mm

Turning Radius (Inner/Outer)

5.2/7.1 m

Vertical Lock Angle

+/- 10 Degree

Vibration Stage



12 V

Wheelbase Size

2690 mm

Working Width

1675 mm

Ground Clearance

300 mm

Drum Diameter

1220 mm

Hydraulic Tank Capacity

85 L

Alternator Output

Max 95 A

Max Working Speed

5.5 km/h

Travel Speed

11.5 km/hr

Drum Width

1675 mm

Fuel Filter


Service Brake

Hydrostatic Propulsion System



After Sales Service Available



12 Months

Fuel Tank Capacity

240 L

Model Name/Number


Engine Power

76 HP


Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 30 Days
  • Main Domestic Market
  • All India
