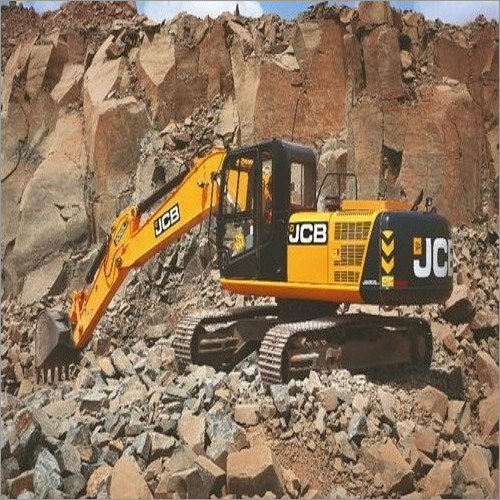

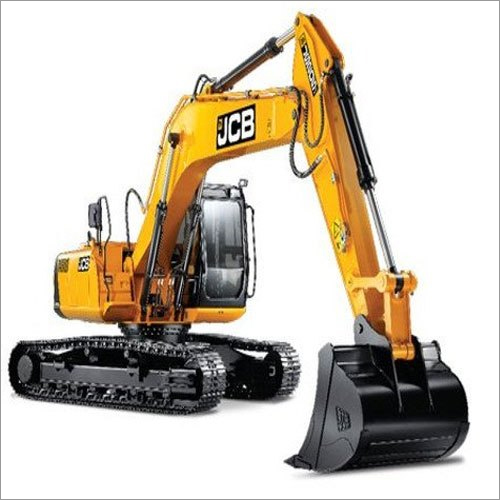

JCB NXT 205LC Excavators

Bore X Stroke

102 mm X 120 mm

Counter Weight Clearance

1079 mm

Gross Power

140 HP @2000 rpm

Height Over Cab

3060 mm

Maximum Flow Rate

20 LPM

Max Operating Weight

21,250 kg

Max Torque

571 N-m @ 1300 rpm

Minimum Swing Radius

3835 mm

Tractive Force

170 kN

Transport Height With Mono Boom And Dipper

3122 mm

Transport Length With Mono Boom And Arm

9634 mm

Under Carriage Overall Length

4460 mm

Track Gauge

2390 mm

Starting System

24 V

Ground Bearing Pressure

0.58 kg / sq cm

Alternator

24V, 75 amp, heavy duty

Width Over Tracks

2890 mm

Width Of Super Structure

2549 mm

Track Length On Ground

3660 mm

Track Height

885 mm

Engine Piston Displacement

5.88 L

Bucket Rotation

177 Deg

Ground Clearance

435 mm

Engine Model

Cummins 6 BT 5.9C

Brand

JCB

Fuel Tank

343 L

Travel Speed

3.8 kmph

Tail Swing Radius

2825 mm

Engine Type

Water cooled, 4 stroke, 6 cylinder in line direct injection, turbocharged diesel

Maximum Bucket Capacity

1.02 cum

Maximum Engine Power

140 HP

Operating Weight

21250 Kg

Model Name/Number

NXT 205LC
