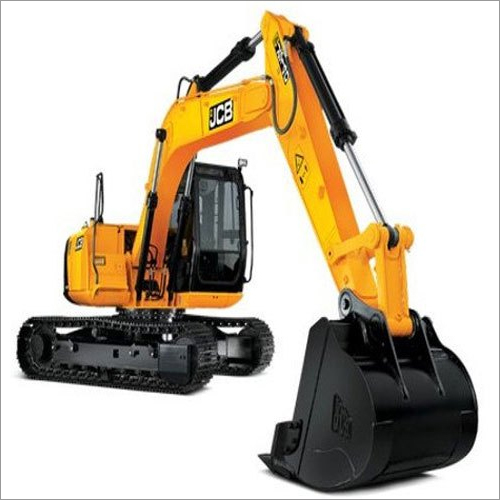

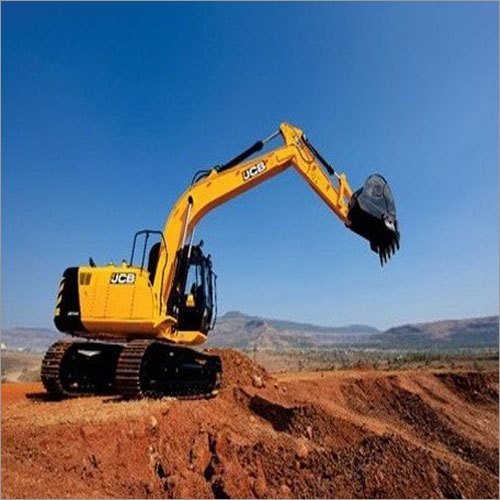

JCB NXT 140 Tracked Excavators

JCB NXT 140 Tracked Excavators
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 4600000 INR/Unit
Product Specifications
  • Product Type
  • JCB NXT 140 Tracked Excavators
  • General Use
  • Industrial
  • Material
  • Other
  • Speed
  • 3.6 Km/hr
  • Automatic
  • Yes
  • Control System
  • Manual
Product Description

We are conveyed during the time spent manufacturing and providing of different kinds of JCB items. Here we are supplying JCB NXT 140 Tracked Excavators that is made by using qualitative required materials with the help of latest technology. It is widely utilized in JCB for handling material. All the provided items are appropriately kept an eye on the different quality boundaries before dispatching them from our premises. Offered JCB NXT 140 Tracked Excavators can be avail from us at a sensible value rate.

Product details

Bucket Tear-out Force

8974 kgf

Counterweight Clearance

910 mm

Counter Weight Clearance

910 mm

Height Over Cab

2997 mm

Maximum Digging Reach

8030 mm

Maximum Flow Rate

2 x 120 L/min

Track Shoe

600 mm (Standard)

Transport Height With Mono Boom

2997 mm

Transport Length With Mono Boom

7630 mm

Tractive Effort

104.1 KN (10615 kgf

Track Gauge

1990 mm

Maximum Digging Depth Metre

5203 mm

Height Over Grab Rail

2622 mm

Arm Digging Force

7401 kgf

Width Over Tracks

2490 mm

Width Of Super Structure

2410 mm

Undercarriage Overall Length

3550 mm

Track Length On Ground

2780 mm

Track Height

815 mm

Maximum Dumping Height

6370 mm

Engine Piston Displacement

3.9 L

Ground Clearance

460 mm

Engine Model

Cummins 4BT 3.9C



Travel Speed

3.6 kmph

Tail Swing Radius

2150 mm

Operating Weight

14,320 kg

Maximum Engine Power

100 HP

Model Name/Number

NXT 140


Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Supply Ability
  • 20 Unit Per Month
  • Delivery Time
  • 30 Days
  • Main Domestic Market
  • All India
