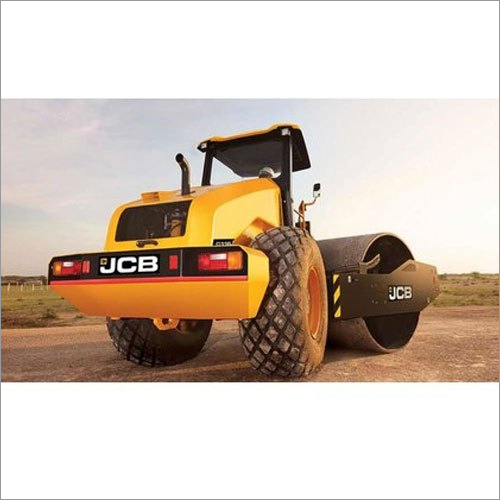

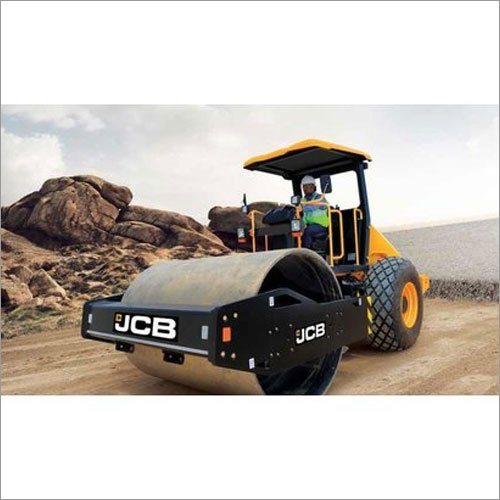

JCB 116 Single Drum Soil Compactor

JCB 116 Single Drum Soil Compactor
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 31,00000 INR/Unit
Product Specifications
  • Product Type
  • Single Drum Soil Compactor
  • General Use
  • Industrial
  • Material
  • Metal
  • Automatic
  • Yes
  • Control System
  • Manual
  • Color
  • Yellow
Product Description

Due to its uses and market review, we are manufacturing and supplying qualitative JCB 116 Single Drum Soil Compactor to our valuable clients which is generally utilized in JCB for compacting soil, asphalt or other materials. It works by increasing the load-bearing capacity of the surface. This item is appreciated in the market because of its high quality and superb durability. Single Drum Soil Compactor can be avail from us at fixed price rate without any delay.

Product details

Air Cleaner

Two stage dry type

Axle To Rear Face

1517 mm

Drum Diameter

1500 mm

Drum Thickness

28 mm

Drum Width

2100 mm

Front Departure Angle

39 Degree

Height To Top Of Seat

2280 mm

Inner Diameter Pad Foot Drum

1500 mm

Operating Axle Load Front / Rear

6350 / 4900 Kg

Operating Weight

11250 Kg

Outer Diameter Pad Foot Drum

1680 mm

Over Hang

70 mm

Rear Departure Angle

34 Degree

Steering Lock Angle

+- 35 Deg

Total Displacement

4399 cm3

Total Travel Clearance

2995 mm

Total Travel Length

5473 mm

Wheel Diameter

1560 mm

Working Speed

6.5 km/h

Wheelbase

2846 mm

Overall Width Of The Machine

2240 mm

Ground Clearance

443 mm

Fuel Tank

300 L

Fuel Filter

Cartridge

Engine Model

JCB Diesel Max TCA-74, TCA-85

Engine Emission

BS-III confirms to CMVR norms

Engine Power

100 HP

Model/Type

116

Brand/Make

JCB



Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Supply Ability
  • 5 Unit Per Month
  • Delivery Time
  • 30 Days
  • Main Domestic Market
  • All India
